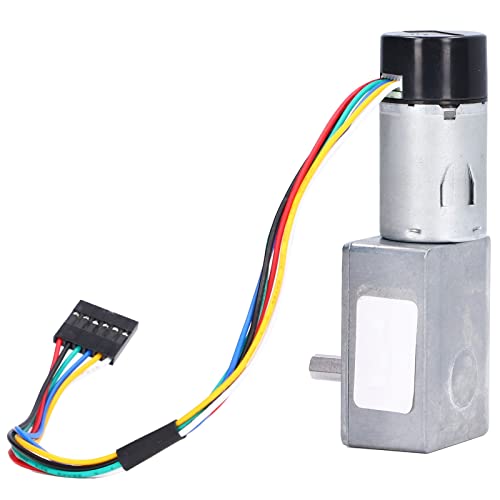

High Torque DC Gear Motor - 90RPM, 6V Self-Locking Metal Encoder Reduction Motor for Home Appliances | Perfect for Smart Locks, Automatic Doors & DIY Robotics Projects

Product Description

Feature:1. 0.2in Output Shaft: 2in output shaft is more stable, superior thermal conductivity, high hardness, and anti friction.2. All Metal Material: The gear box adopts all metal material, which is more wear resistant, prolongs the service life and does not rust.3. Red Copper Coil: The red copper coil has super electrical conductivity, which makes the power output of the motor smooth.4. Long Lifespan: The encoder has 3 layers of high density molecular coatings, which can effectively isolate dust, and the lifespan is 10 times that of ordinary coatings.5. Application: Widely used in household appliances, audio visual products, office equipment, power tools, intelligent systems, etc.How to Use:Wiring: Red: Red connected to motor + positive poleBlack: Black connected to the negative pole of the motorGreen: Green connected to the sensor ground wire‑(5‑12V)Blue: Blue connected to sensor power + (5‑12V)Yellow: Signal A output point (11 pulses)White: Signal B output point (11 pulses)Specification:Item Type: Gear MotorMaterial: Zinc Alloy, Red CopperPurpose: Industrial drive deviceOperating Voltage: DC 6V/12VOutput Shaft Size (Diameter x Length): Approx. 6 x 10mm/0.2 x 0.4inShaft Type: D typeSpeed: Adjustable speedWhether Forward and Reverse: Can be forward and reverseCable Length: Approx. 230mm/9.1inApplication: Widely used in household appliances, audio-visual products, office equipment, massage and health care, beauty and fitness equipment, equipment, high-end toys, gifts, electric daily necessities, electric tools, automatic sprayers, automobile automatic facilities, intelligent systems,
